Home > Products > Warehouse rack/Pallet rack > 3 Way Pallet Stacker

3 Way Pallet Stacker

  • 3 Way Pallet Stacker
  • 3 Way Pallet Stacker
  • 3 Way Pallet Stacker
  • 3 Way Pallet Stacker

3 Way Pallet Stacker

    Min. Order: 1 unit
    Packaging: Nude Cargo
    Productivity: 500/per month
    Brand: WINGS
    Transportation: Ocean
    Place of Origin: China
    Supply Ability: 500/per month
    Certificate: ISO9000,CE
    HS Code: 842710
    Port: Qingdao Port,Tianjin Port,Shanghai Port

Basic Info

Model No.: WSC10

Product Description

This forklift is designed for stacking goods to a high position in narrow aisles. Named for its amazing function, it can stack goods on three direction without moving the main body. Its flexible forks can achieve 180°rotating angle, together with Side Shifter, at least 1.5 times storage capacity will be increased.



3 WAY PALLET STACKER -2

3 WAY PALLET STACKER -3


More Features

1. Simultaneously side-shifting and rotation act from the left initial position to the right initial position, working efficiency.

2. Adopted Regenerative brake, Mechanical disc brake, Dual Brakes, secure and reliable.

3. Interlocking of Side-shifting and rotation action to avoid dangers caused by wrong operation.

4. HD wireless video system guarantee the clear view of high position, improving the security and convenience.

5. Advanced USA Curtis controller

6. 100% AC motors, free-maintenance

7. Electric Powered Steering - Independent electric motor of EATON, easy to operate and reduce fatigue.

8. Imported hydraulic components

9. High-duty mast with wide range lifting height


3 WAY PALLET STACKER -6



Optional Equipment

Magnetic Navigation

Combined with the three-way forklift magnetic navigation mode, the adapted shelf dose not need the bottom beam. And the goods can be placed directly on the ground. This scheme cancels the construction and installation of bottom beam and ground guide rail in the traditional narrow lane rack scheme, shortens the construction period and reduced the overall cost of the rack system.


Presetting Function

Presetting the Lifting Height to achieve semi-automatic stacking work, help reduce the fatigue of operator while enhancing the efficiency.

Longer fork // Mast type - Lifting height // Widen Fork arm carrier



3 WAY PALLET STACKER -5



DETAILS DIMENSION-2


Main Parameters

Standard

1.1

Brand

WINGS

1.2

Model

WSC10

(Duplex mast)

1.3

Power type

Battery

1.4

Operation type

Stand on

1.5

Rated capacity

Q(kg)

1000

1.6

Load center

C(mm)

500

1.7

Front overhang

x(mm)

657

1.8

Wheelbase

y(mm)

1605

Weight

2.1

Service weight(incl. battery)

kg

4235

Wheel

3.1

Wheel type

PU

3.2

Load wheel

mm

φ140 X100

3.3

Drive wheel

mm

φ380 X165

3.4

Auxiliary wheel

mm

φ204 X76

3.5

Number of wheels, front/rear(x=drive wheel)

4/1X+2

3.6

Wheel tread, drive side

b10(mm)

726

3.7

Wheel tread, load side

b11(mm)

1210

4.1

Mast closed height

h1(mm)

2595

4.2

Free lift height

h2(mm)

0

4.3

Lift height

h3(mm)

3000

4.4

Mast extended height with load-backrest

h4(mm)

4085

4.5

Overhead guard height

h6(mm)

2260/2300

4.6

Stand board height

h7(mm)

355

4.7

Overall length

l1(mm)

2906

4.8

Overall width

b1(mm)

1450

4.9

Fork size

l/e/s(mm)

1000/125/50

4.1

Installation level

II A

4.11

Fork spacing(outside)

b5(mm)

265-760

4.12

Min. ground clearanee

m1(mm)

40

4.13

Aisle width for pallet 1000*1000mm/1200*1200mm

Ast(mm)

1480

4.14

Turning radius

Wa(mm)

1880

Function

5.1

Driving speed(loaded/unloaded)

km/h

7.5/8

5.2

Lifting speed(loaded/unloaded)

mm/s

240/290

5.3

Lowering speed(load/unloaded)

mm/s

310/310

5.4

Brake type

Mechanical

Drive

6.1

Drivi ng motor(S2-60min)

kw

5.5 AC

6.2

Lifting motor(S3-15%)

kw

8.6 AC

6.3

Battery voltage/capacity

V/Ah

48/390

6.4

Battery weight

kg

650

6.5

Steering system

EPS

Other

7.1

Battery replacement type

Side pull

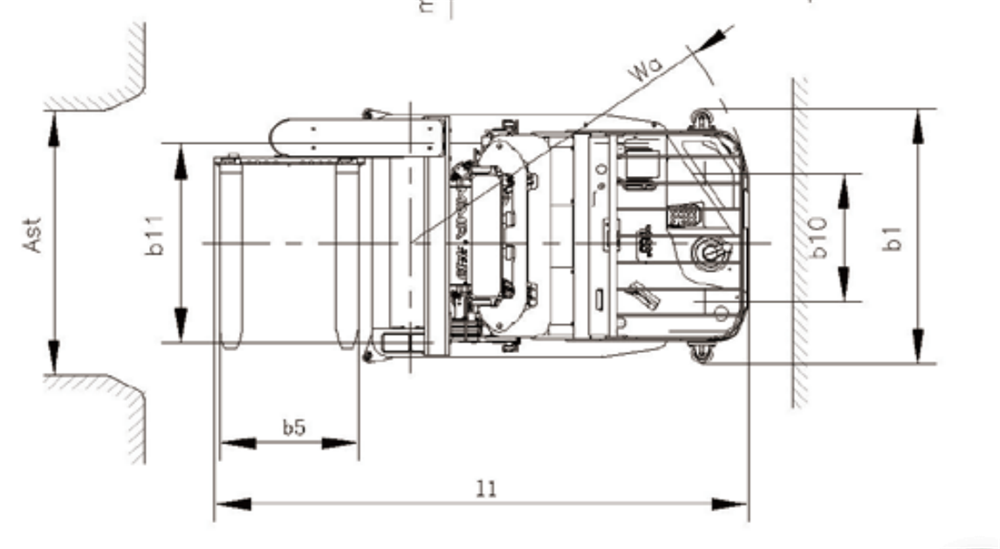

DETAILS DIMENSION


WINGS offers a wide range of Warehouse Equipment, Electric Stacker, Electric Pallet Truck, Order Picker Truck, Multi-direction Forklift, Reach Truck, Hand Pallet Truck, Hand Pallet Stacker, Drum Handler and Narrow Aisle Forklift. With a highly customized options, we are ready to give you the reliability and performance you need.


WINGS WAREHOUSE EQUIPMENTS



Shandong Wings Heavy Machinery Co.,Ltd

  • 1
  • 2
  • 3
  • 4


Shandong Wings Heavy Machinery Co., Ltd, which is located in Jinan city, was founded in 2008, since then, Wings has set its aim of becoming a reliable company of providing durable machines to clients from all over the world.

Now we are an enterprise covering R&D , manufacturing and sales of construction machinery. And our main products are diesel forklift, electric forklift, rough terrain forklift, electric reach truck.

WINGS machinery`s annual production capacity is 10000 units and has passed the ISO9001:2000 international quality management system certification and assessment of State Engineering Machinery Quality Supervision & Testing Center. As a member of China Construction Machinery Council and China Agricultural Machinery Council, Shandong Wings Machinery always follows the philosophy of "durable quality & reliable service".

To develop Wings brand, Wings Machinery considers products quality as the lift of the enterprise and controls the quality strictly. Take customers' needs as the direction of products development and ''to build superior quality" as our striving production target.

In the past 11 years, our machines' superior performance and timely service help us win more clients` trust and support, such as Malaysia construction company, Burmese military and traders, Bruneian construction and equipment lease company, Thailand project business company, Forestry Development Corporation in Indonesia, Singaporean shipyard, Papua New Guinea equipment lease company, drilling equipment manufacture in South Korea, transport companies in Mongolia, supermarkets in Brazil, sea ports and airports in Saudi Arabia and end users from Ethiopia, Uganda, Nigeria, Angola, Argentina and so on. We also established long-term cooperation with them.

Wings Machinery is paying more attention on technological innovation, managerial innovation and sales team improvement. And To provide excellent services and quality for every customer is our consistent aim and we will continue to work hard to bring more value for our partners and clients, faithfully spare no effort to meet all friends' expectations.
