Motorized Electric Handling Trolley on Rails
|Payment Type:||L/C,T/T,Money Gram,Western Union|
|Terms of Trade:||FOB,CIF|
|Min. Order:||1 Set/Sets|
|Delivery Time:||15 Days|
|Packaging:||According to Your Requirements.|
|Place of Origin:||HENAN ,CHINA|
|Certificate:||ISO9001: 2000, CE, GOST SGS|
Model No.: LT-ET001

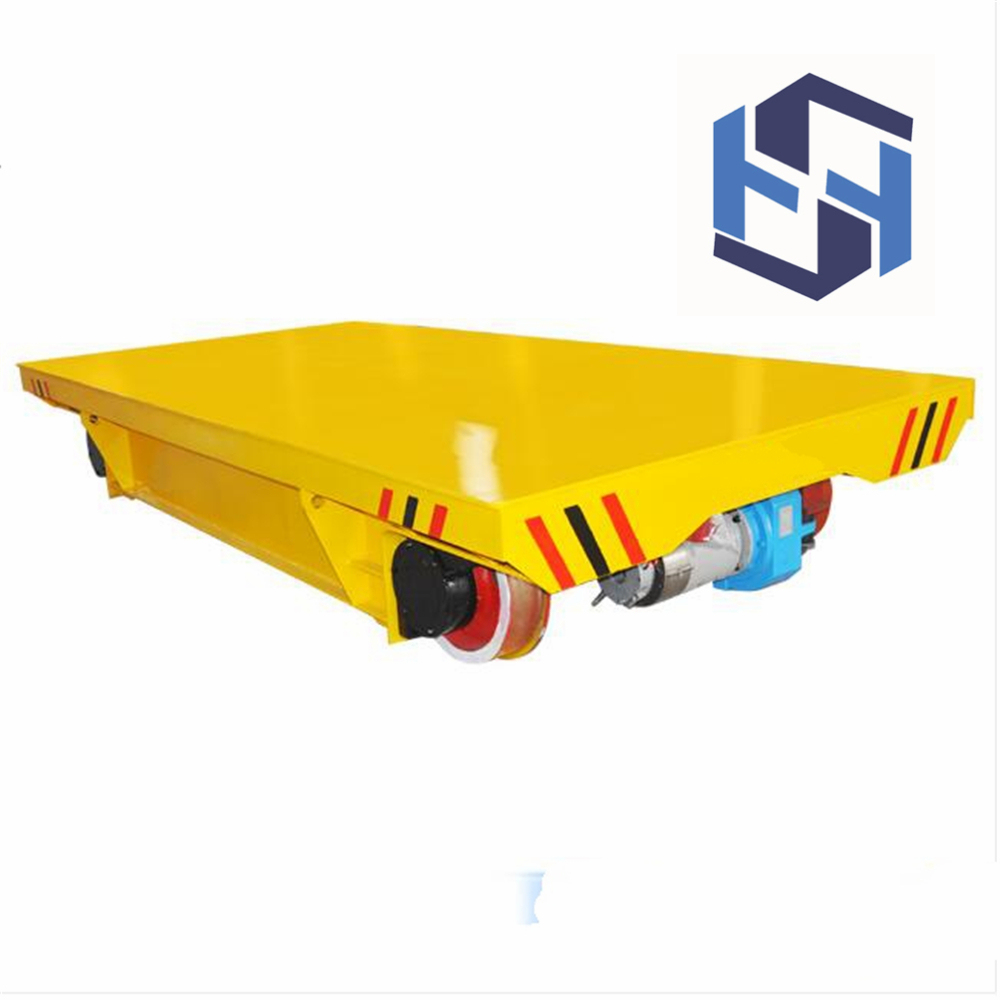

Cable Drum Powered Motorized Electric Handling Trolley on Rails
Electric handling trailer, also called transfer trolley, transfer cart and climbing transfer cart, is a kind of electric material handling equipment. This kind of electric handling trailer is powered by cable reel (also called cable drum) to drive wheels and make the trailer start, stop, go forward and backward, speed up and slow down and so on.This electric handling trailer can be used both on the "s"and arc-shaped railways.
Characters of 1-300t Cable Drum Powered Motorized Electric Handling Trolley
· Anti-high temperature
· Apply to various occasions
· stable start, big starting power, small impact to the gear reducer, low voltage, long lifetime and so on.
· It has no strict requirement for the construction of the railway
· No limit of running hours
· Safe and convenient operation for there is no wire outside the trailer
· Adjustable speed
Technical Parameters of Cable Drum Powered Motorized Electric Handling Trolley
Model LTP-2t LTP-20t LTP-50t LTP-100t LTP-150t Rated Load(t) 2 20 50 100 150 TableSize(mm) Length(L) 2000 4000 5500 6500 10000 Width(W) 1500 2000 2500 2800 3000 Heigth(H) 450 550 650 850 1200 Wheel Base(mm) 1200 2800 4200 4900 7000 Rail Inner Gauge(mm) 1200 1435 1435 2000 2000 Wheel Diameter(mm) 270 350 500 600 600 Wheel Quantity 4 4 4 4 8 Ground Clearance(mm) 50 50 50 75 75 Running Speed(mm) 25 20 20 20 18 Motor Power(kw) 0.8 2.5 5.5 11 15 Max Wheel Load(KN) 14.4 77.7 174 343.8 265.2 Reference Weight(t) 2.3 5.5 7.6 13.9 26 Recommended Rail Model P15 P24 P43 QU100 QU100
1. Our History:
LITE Crane Co., LTD has focused on top quality crane parts for over 14 years in China. We started as a
small operation, but now have become one of the leading suppliers in the crane industry in China. Today, LITE Crane Co., LTD has been one of the top producers of quality crane and crane parts, such as: electric hoist, single, double girder bridge, gantry, grab, casting, explosion-proof crane series and
2. Our Factory:
LITE Crane Co., LTD is located in Xinxiang, Henan Province China. The company covers an area of 680 thousand square meters and owns more than 2700 employees. The annual sales of LITE Crane Co., LTD is 1.6
billion USD, there are more than 600 sales agencies at home and abroad and more than 180 middle& senior
engineering and technical personnel who are in charge of design and development of all products and also
own the development center of their new technology and products.
Our Products includes the following:
1, Crane accessories
2, Electric hoist
3, Single - beam cranes
4, Double - beam cranes
5, Bridge crane
6, Gantry crane
7.Lifting equipment and accessories
We supply crane products all over the globe to a wide range of companies worldwide.
The products are widely used in the following industry, such as power plants, nuclear power, water
conservancy, tunnels, bridges, petrochemical, metallurgy, construction, open-air warehouse, wharf,
Our company is a member of China Crane Association and vice chairman company of China Heavy Machinery
Association. It owns the production licenses of electric hoist, single & double-girder crane, the safety
of the approval certificate of manufacturing, installation and maintenance, the safety approval
certificate of the manufacturing of 320T bridge crane, portal crane and 280Tcasting crane.
The company has passed the quality system certification of GB/T19001 -2008/IS09001:2008, the
environmental management system certification of GB/T24001-2004/ISO14001:2004 and the occupational
health and safety management system certification GB/T28001-2001.
There are 1600 units of all kinds of processing equipment which can independently accomplish all the
processes such as milling, digging, grinding, pulling, boring, rolling, drilling, punching, cutting,
bending, welding, testing and heat treatment.
Our products are sold to more than 30 provinces, municipalities and autonomous regions in China, and
also exported to Australia, Vietnam, India, Thailand and some Southeast Asian countries. The annual
sales of double-girder and portal cranes is more than 3600 units, more than 23000 units single-girder
cranes, about 23000 units single-girder & double-girder electric hoist and accessories. The production
and sales of the single-girder cranes has lead the nation for seven consecutive years and the per capita
output and economic benefits are among the best in the same industry.
Besides our existing molded products, LITECrane Co., LTD also can produce products according to the
drawings or samples from our customers. We control the product quality critically for every step during
the manufacturing from custom.
Vice President of China Heavy Machinery Association, China's green environmental protection and energy conservation enterprise, China's first single beam crane enterprise, more than 2,700 employees. In 2017, the company has annual sales of 2.8 billion yuan, 106 world sales agencies, more than 280 middle and senior engineers, world-class high-end material handling equipment for design and development, and 110 new technologies and product development centers with innovative technologies.
As a high-tech enterprise, LITE continues to innovate its technology, world-class product technology, using environmental aerospace, power plants, railways, terminals, mines, factories.Production equipment capacity: the company produces world-class intelligent robot welding equipment, intelligent machining center manufacturing, MG gantry crane 5t-280t, double girder bridge crane 5t-680t, shipbuilding crane 5t-2800t, CD electric hoist 0.25t-120t It is one of the top 50 enterprises in China.Sincerely hope to cooperate with you and come.
For your service: high quality and low price products, only need to provide workshop drawings, marked tonnage size, lifting height, span, voltage, use environment and process, our company will design according to your needs, precision manufacturing for you Cooperative services, Recruitment agents around the world. Technical exchanges import and export cooperation, a lifelong friendship, welcome you to visit China.
